K04-001 TURBO TURBOCHARGER UPGRADE FIT FOR VOLKSWAGEN VW JETTA GOLF GTI 1.8T 2000-2005

Application:

Fit For Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009

Fit For Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009

Fit For Volkswagen BEETLE upgraded Engine 4EB/4EA/4EC 1996-2009

Fit For Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009

Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model):

Fit For Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003

Fit For Audi A3 with AUQ, ARZ, APP engine 132 KW, 180 PS 1996-2003

Fit For Audi TT with AUQ engine 132 KW, 180 PS 1998-2006

Fit For Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-2006

Fit For Skoda Octavia AUQ engine 132 KW, 180 PS 2001–2005

Fit For Volkswagen Golf/Bora/ Fit For Jetta with AUQ, ARZ Engine 2000-2009

Fit For Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05

Fit For Volkswagen Golf ComFit Fortline Hatchback 4-Door 2005

Fit For Volkswagen Golf Europa Hatchback /Sedan 4-Door 2005

Fit For Volkswagen Golf GL Hatchback /Sedan 2-Door/4-Door 2005

Fit For Volkswagen Golf GLS Hatchback 4-Door 2005

Fit For Volkswagen Golf GTI 1.8T / Sedan 4-Door Hatchback 2-Door 2005

Fit For Volkswagen Golf GTI VR6 Hatchback 2-Door 2005

Fit For Volkswagen Fit For Jetta GL TDI Sedan 4-Door/TDI Hatchback 4-Door 2005

Fit For Volkswagen Fit For Jetta Trendline Hatchback 4-Door 2005

Fit For Volkswagen Fit For Jetta 2.5 Sedan 4-Door 2005

Fit For Volkswagen Fit For Jetta ComFit Fortline Sedan 4-Door 2005

Fit For Volkswagen Fit For Jetta GL TDI Wagon 4-Door 2005

Fit For Volkswagen Fit For Jetta GL Wagon 4-Door

Fit For Volkswagen BEETLE, Fit For IBIZA upgraded Engine FT 190 4EB/4EA/4EC 1996-2009

Specification:

Turbo Model: K04-001, KO4-001, K042075EAC4.82KCAXK, K04-2075EAC5.82KCAXK

Engine Model: 1.8L-5V transverse, 1.8L -5V quer/transversal

Engine Code: AJQ, APP, AUM, AUQ, ARY

Cooling Type: Water & Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust Bearings: 270 Degrees

Hosepower: 162KW/220PS

Turbo Type: Individual

Condition: 100% Brand New

Package Size: 30 x 27 x 24cm

Package Weight: 6900g

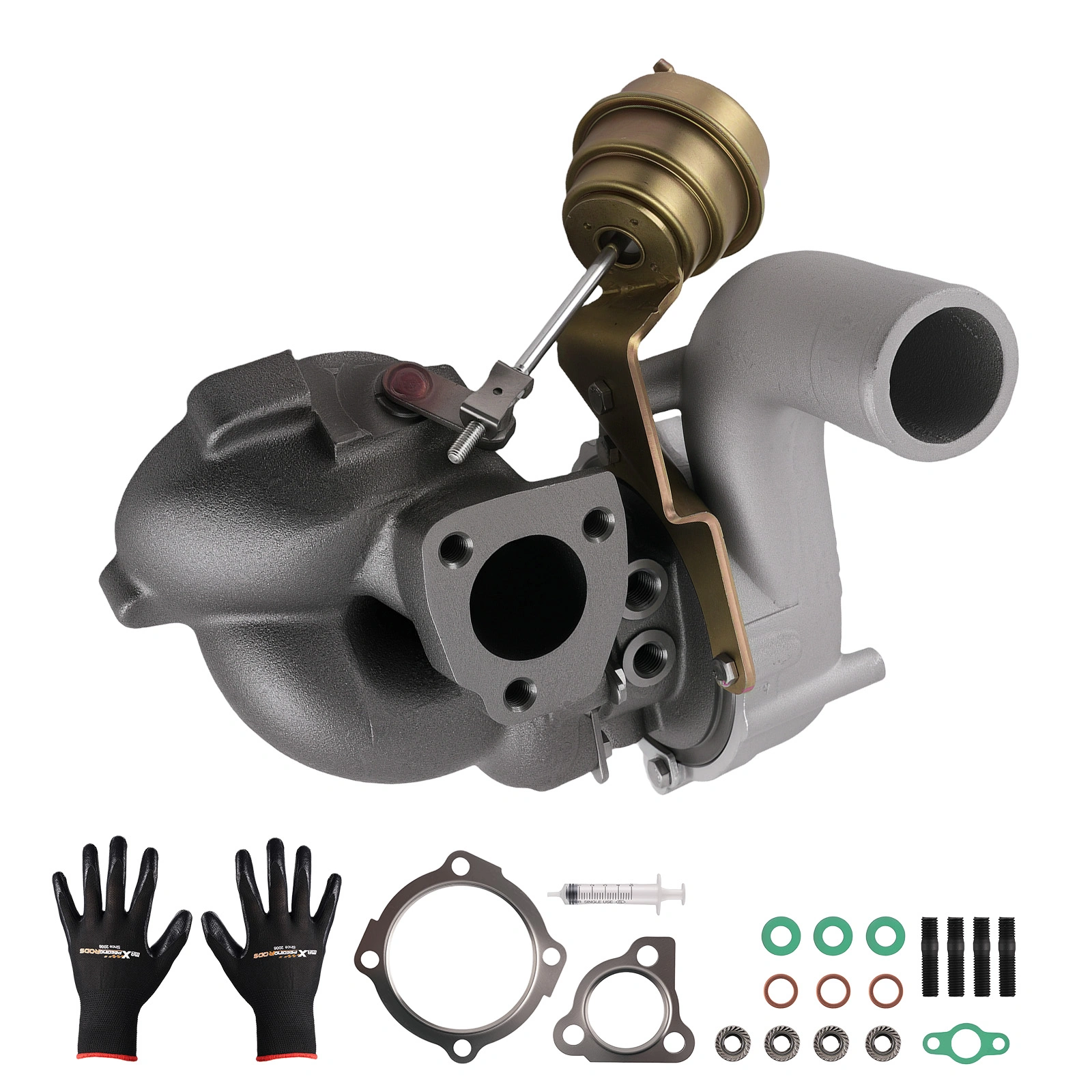

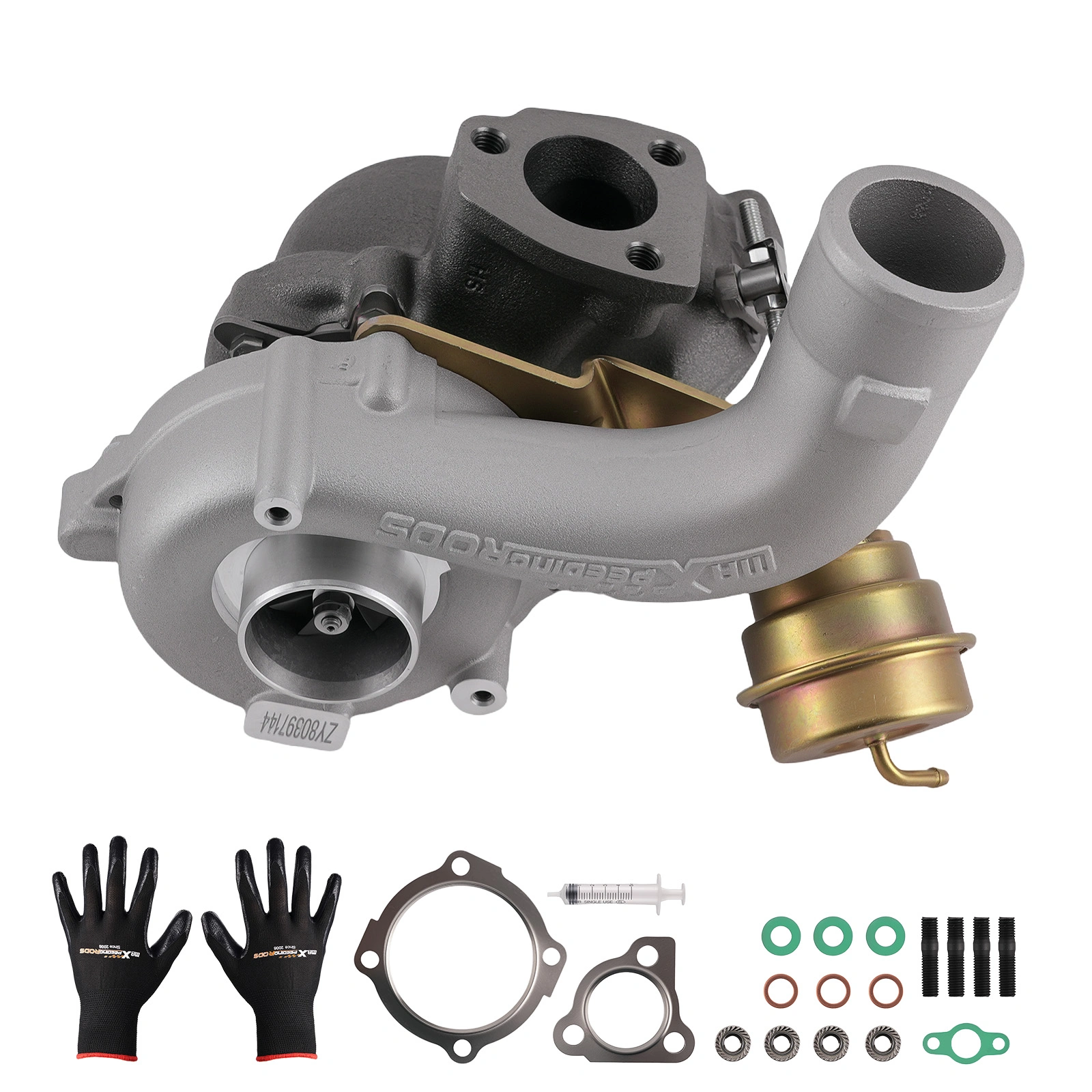

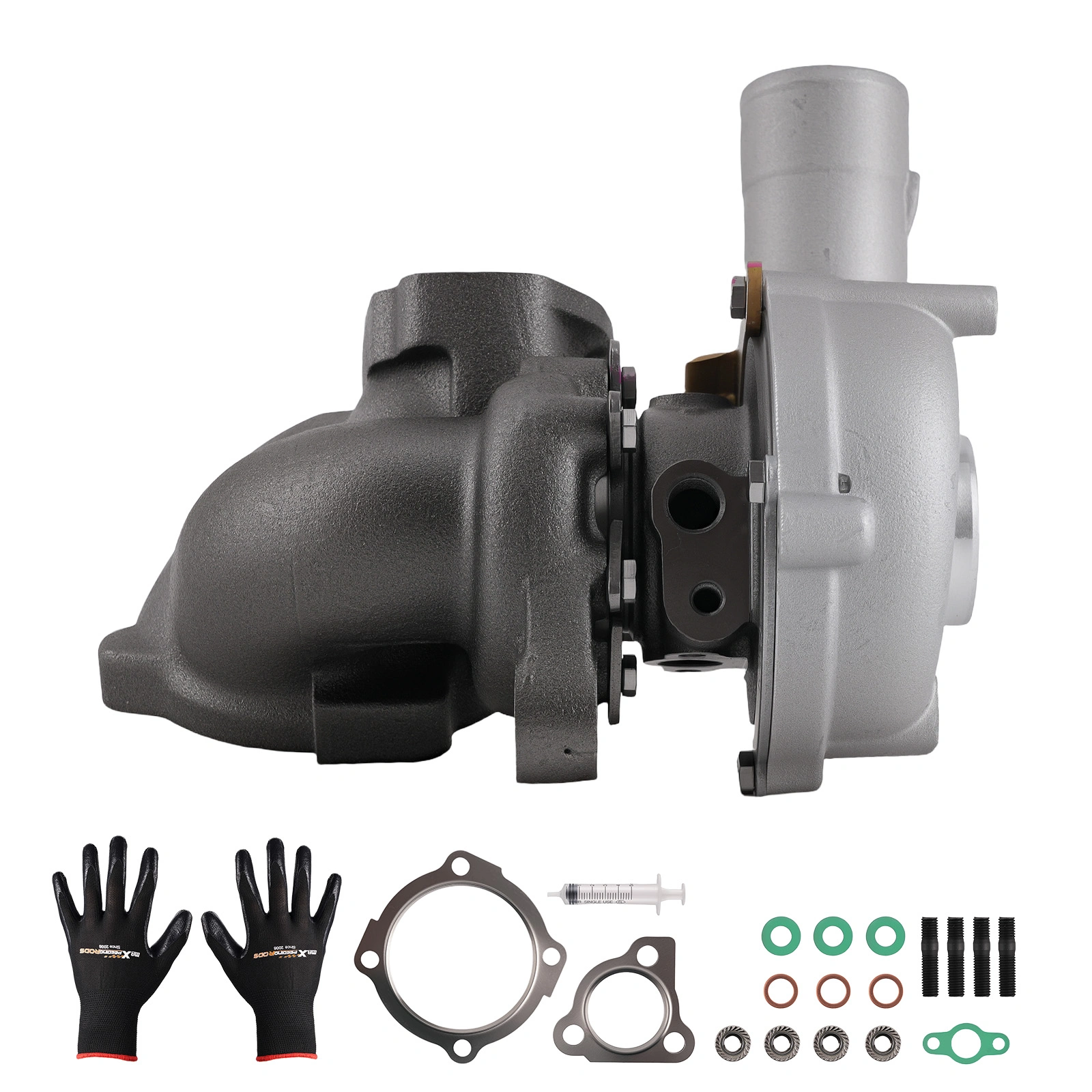

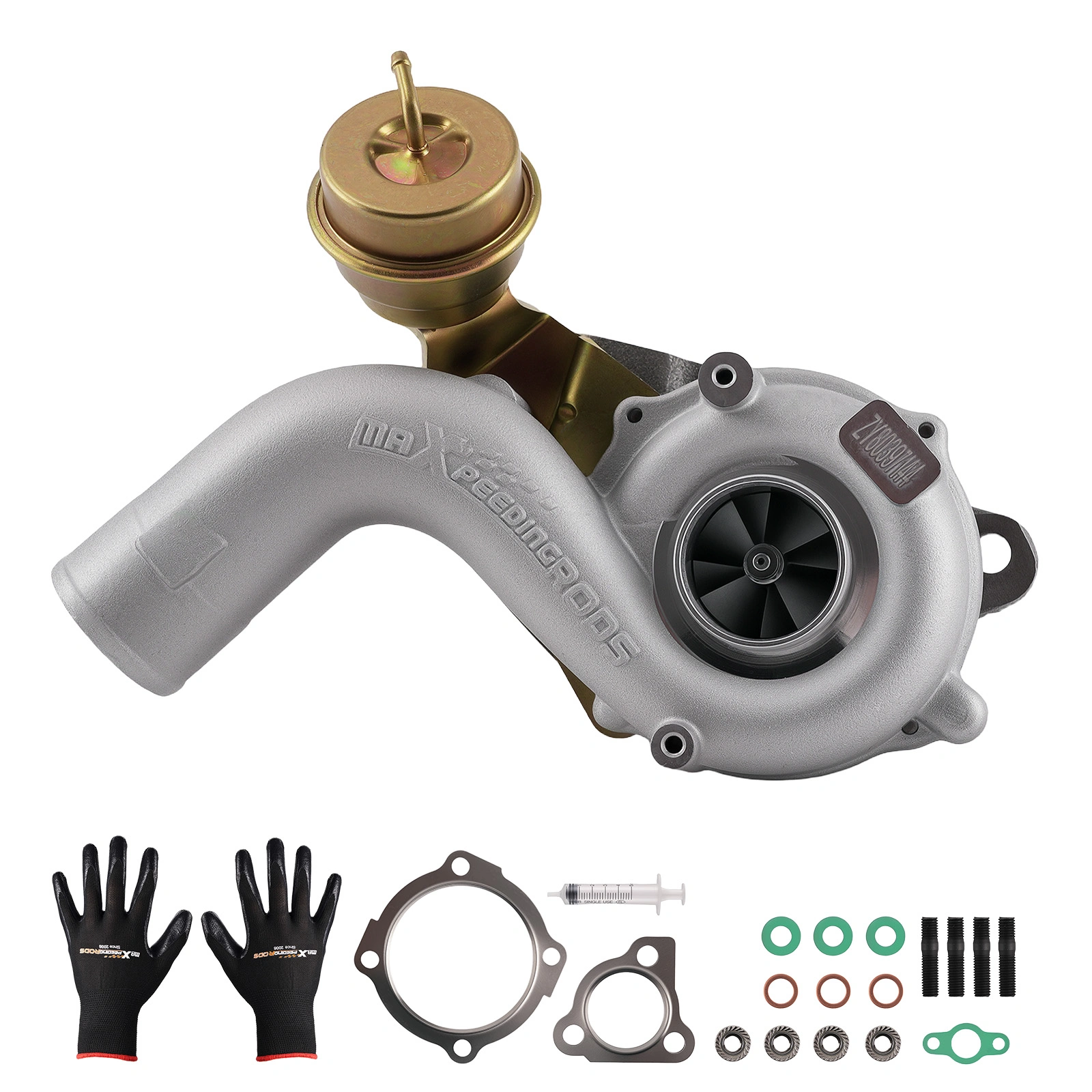

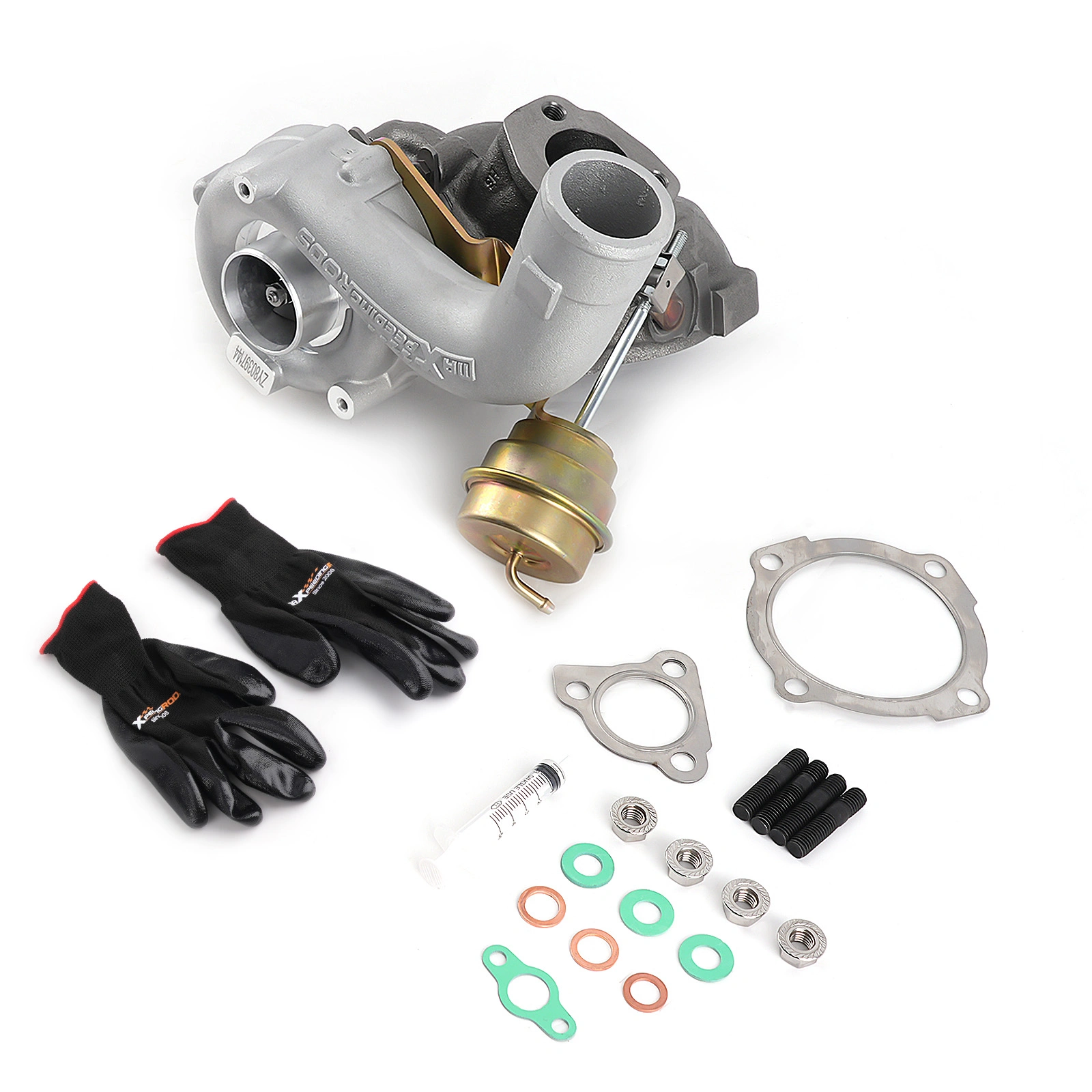

Accessories: You will receive the parts exactly as shown in the picture above.

Replace / Part Number:

K04-001 part number/OE number:

53049500001, 5304-950-0001, 5304 950 0001,

53049887501, 5304-988-7501, 5304 988 7501,

06A-145-705HP, 06A145705HP

*IMPORTANT NOTICE:

1. This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)

2. K04 -001 turbo is different from K03-052 ＆ K03-053

(1) Some modification are needed，compressor intake size is bigger than K03-052 or K03-053

K03-052 ＆K03-053 compressor intake size is 45mm

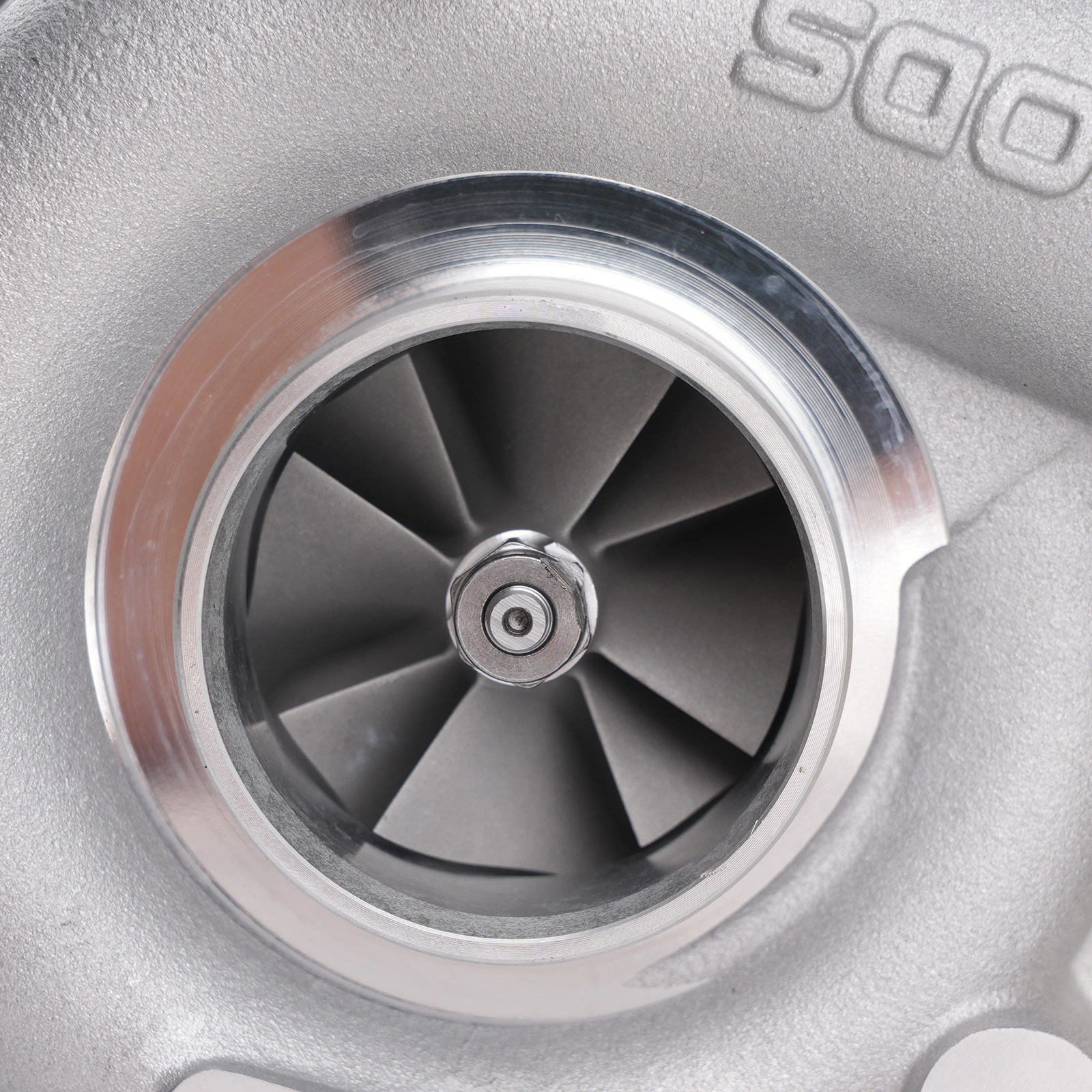

K04-001 compressor intake size is 48.7mm

(2) Silicone hose may need for K04-001 compressor intake connection.

3. Make sure your OE number is correct for K04-001,K03-052 and K03-053

K03-052 Part/OE number:

53039700052, 5303 970 0052, 5303-970-0052,

53039880052, 5303 988 0052, 5303-988-0052,

53039880094, 5303 988 0094, 5303-988-0094

06A145704T, 06A145713D, 06A145713DX,

06A145713DV, 06A145713F, 06A145713FX,

8299299564, 8299299564,

K03-053 Part/OE number:

53039880053, 5303 970 0053, 5303-970-0053,

53039880058, 5303 988 0058, 5303-988-0058,

06A145681H, 06A145702P, 06A145704S,

06A145713B, 06A145713L, 06A145713M

Material:

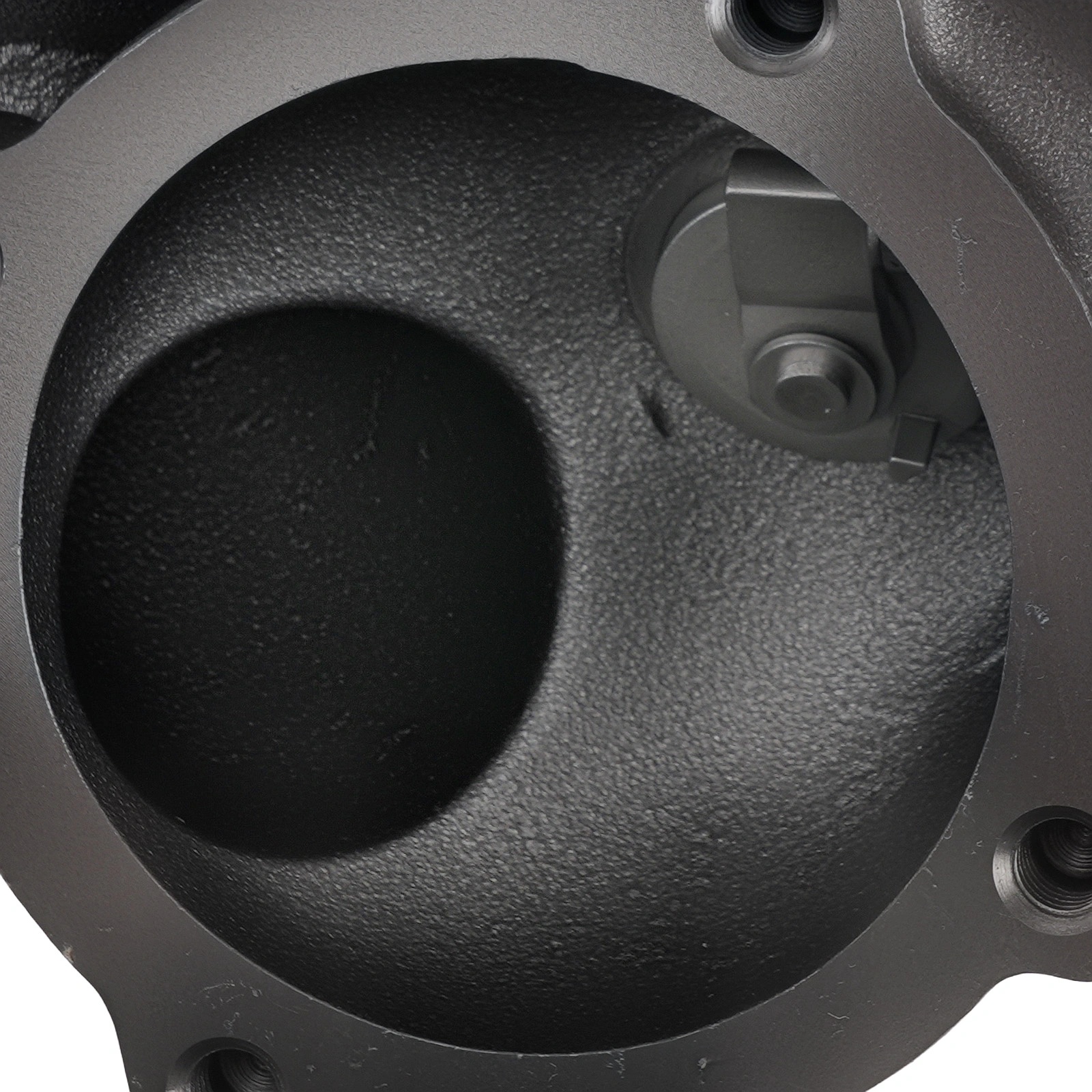

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

Features：

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Note:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)
